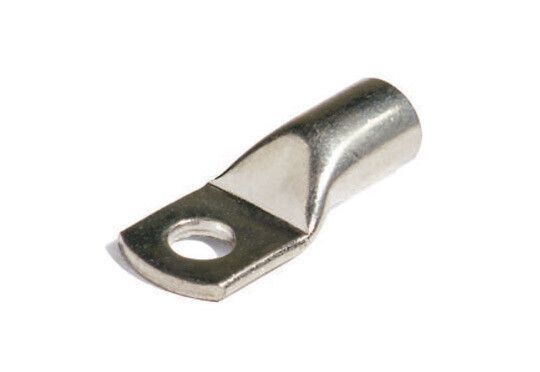

UNI 683 CABLE TERMINAL (UNAV 1134)
Features

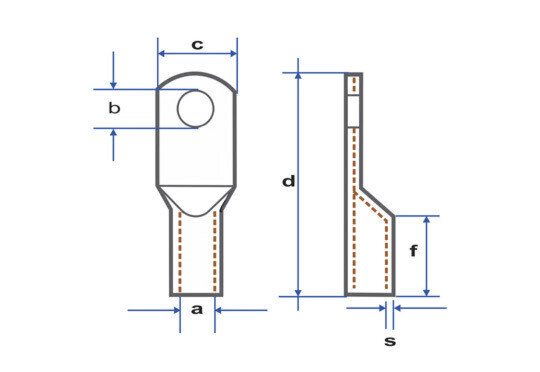

| CATALOG NO. | Materials | Cable Size (mm²) | a (mm) | b (mm) | c (mm) | d (mm) | f (mm) | s (mm) | Designation (called as) UNI - UNAV - Ø screw x a |
|---|---|---|---|---|---|---|---|---|---|
| 1251 | Copper | 35 - 50 | 10 | 8,4 | 17,5 | 40 | 12 | 1 | 8x10 |
| 1251 | Stainless Steel | 35 - 50 | 10 | 8,4 | 17,5 | 40 | 12 | 1 | 8x10 |
| 1252 | Copper | 50 - 75 | 12 | 10,5 | 22 | 47 | 13 | 1,5 | 10x12 |
| 1252 | Stainless Steel | 50 - 75 | 12 | 10,5 | 22 | 47 | 13 | 1,5 | 10x12 |
